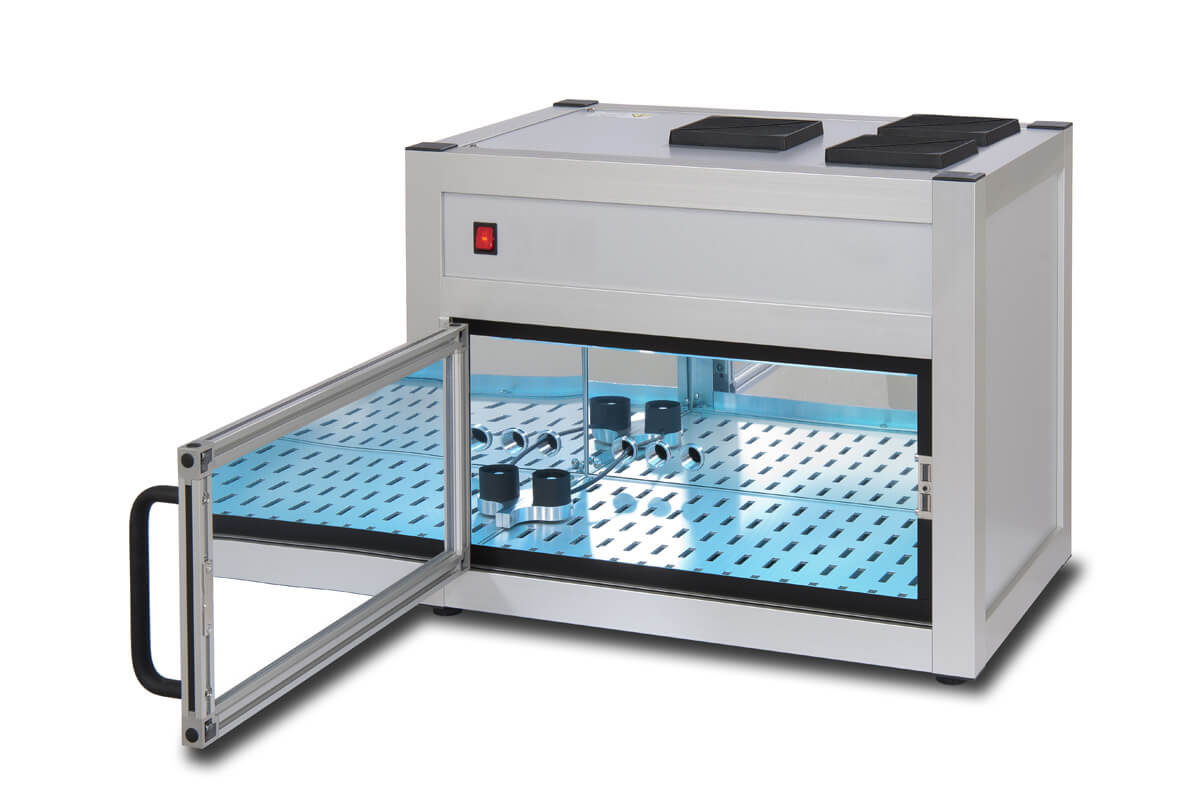

HIGH-POWER UVC CHAMBER BSH-02

The irradiation chamber BSH-02 is a high-powered UVC chamber with superior irradiance of 85 mW/cm². Like all BS irradiation chambers, the BSH-02 offers time- or dose-controlled irradiation of samples with UV light. The chamber is fully equipped with ozone-free UVC amalgam lamps with a total lamp power of 750 W. Compared to our standard BS series, the BSH-02 offers irradiance that is 750% higher. Thus, the irradiance is high enough for high-energy applications or UV curing.

The BSH-02 has compact outer dimensions and the interior irradiation chamber has a base area of 46 x 32 cm and a height of 25 cm. The sample chamber operating temperature is about 45°C so that thermal damage to the specimen is minimized. Due to the high uniformity of the irradiation, the samples may be positioned in any order.

The irradiation control UV-MAT can control two spectral ranges separately and achieves a constant dose independent of lamp aging, contamination or temperature. The dose is measured with calibrated sensors. For this purpose, the sensor already contains an extremely precise analog-digital converter and a temperature sensor. The integrated diffuser ensures the required cosine correction. Excellent long-term stability is achieved through the use of appropriate materials. The sensors are calibrated with traceability to PTB (Physikalisch Technische Bundesanstalt, the German national test authority); after being calibrated, they are supplied with a factory calibration certificate. The memory in the sensor contains all sensor identifications and the calibration history.

The UV-MAT can optionally be controlled by a PC. This allows multi-stage irradiation and documentation of the irradiation.



APPLICATIONS OF HIGH-POWER UVC CHAMBER BSH-02

  • UV-C curing, sealing and bonding
  • Irradiation of bacteria and spore
  • UV-C materials testing
  • Irradiation of PCB (circuit boards)
  • Disinfection



TECHNICAL DATA BSH-02 CURING CHAMBER

Interior chamber 46 x 32 x 25 cm
Dimensions 55,5 x 40 x 43 cm
Weight ~ 32 kg
Power consumption 1000 W
Lamp lifetime up to 8.000 h
Number of lamps 5
Lamp type UVC amalgam, ozone free
Lamp power 150 W each
Sample temperature 45 °C +/- 5°C
Spectra ranges 1
Irradiance UVC 85 mW/cm²
