CUSTOM-MADE SENSORS FOR UVC

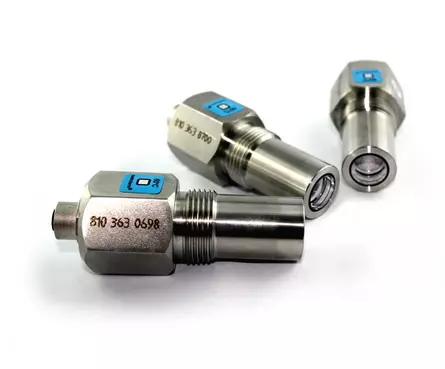

UVCSE LONG FOR UVC TRANSMISSION MEASUREMENT

  • Client-specific UVC-Sensor
  • Modification of our UVC-SE
  • Sensors optical entrance nearer to the lamp
  • Transmission measurement / calculation possible using UVC-SE and the UVCSE long sensor

SWW1 UVC-SENSOR WITH SEPARATELY ARRANGED AMPLIFIER

  • Client-specific UVC sensor
  • Modification of UVC-S sensor
  • Sensor and amplifier separately arranged
  • Submersible sensor
  • Developed for application in sewage, waste / residual water

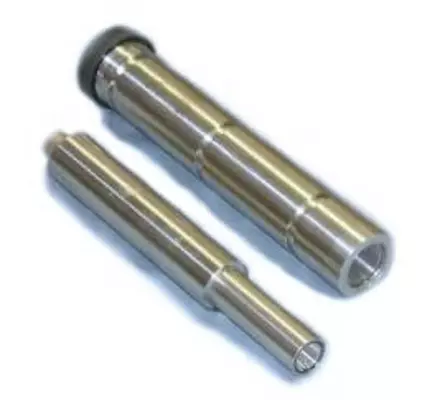

SWD1 UVC-SENSOR WITH OPTICAL PROPERTIES ACCORDING W294-3

  • Client-specific UVC sensor
  • Optical properties in accordance with DVGW document, W294 part 3
  • Individual design according to customer’s requirements
  • Developed for application in drinking water

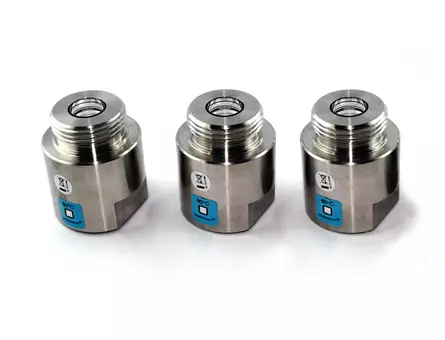

CLIENT-SPECIFIC UVC SENSOR SU

  • Client-specific UVC sensor
  • Sensor with integrated amplifier
  • Supply voltage ±5 V
  • Developed for application in drinking water

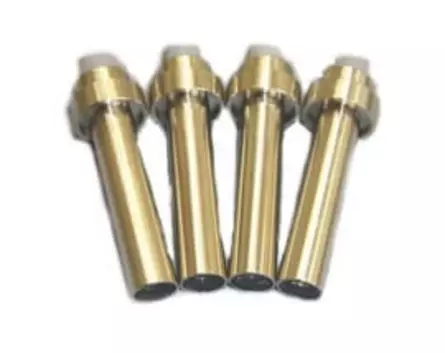

HL SENSOR WITH MECHANICS ACCORDING CUSTOMER SPECIFICATION

  • Client-specific UVC sensor
  • Mechanics adapted to customer needs
  • Sensor with integrated amplifier
  • Supply voltage ±5 V

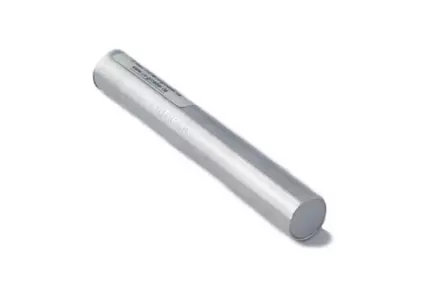

UV MEASURING PROBES UVXL FOR UVA, UVB OR UVC

The UV measuring probes with 14 mm diameter only serve as compact, long-term, stable measuring heads for the supervision of UV irradiation systems and for UV measurements in inaccessible locations. In addition, optional water and light guide adapters enable the application in hot locations and in water disinfection systems. The integrated electronics generate a signal voltage that is transferred to the UV monitor RM-31 or to the PLC with low noise by a shielded cable.
