UV-Sensors and light sources from Opsytec Dr. Gröbel
professional
photonics.

Products for ultraviolet and visible radiation

Opsytec develops and manufactures measurement and irradiation systems for ultraviolet and visible radiation. The portfolio comprises UV sensors, radiometers and dosimeters, spectroradiometers, UV LED light sources, UV light sources, irradiation chambers, integrating spheres and process photometers. They measure irradiance, UV dose, spectral irradiance and transmittance – for UV curing, bonding, disinfection, materials testing, photostability and quality assurance.

Special solutions are built in our own production – from the adapted sensor to the customer-specific irradiation system.

Irradiation chamber for UV aging

Irradiation Chambers

  • UV curing, UV gluing
  • UV disinfection
  • Photochemistry
  • Photostability
  • Materials aging
UV LED irradiation chamber BSL-01i with the door open, inert operation under nitrogen

UV LED chambers

  • UV curing and UV bonding in seconds instead of minutes
  • 110 to 800 mW/cm² at 365, 385, 395, 405 or 450 nm
  • Four sizes with interiors from 20 × 20 to 86 × 64 cm
  • Dose-controlled exposure, reproducible across the batch
  • Inert operation with nitrogen, heating and cooling plate (BSL-01i)
Two UV radiometer sensors with cosine-corrected diffuser and connecting cable

VIS and UV Sensors

  • Dose control for UV curing and gluing
  • Monitoring of UV irradiation
  • Control of disinfection systems in the packaging industry
  • UVC water disinfection, UVC waste water treatment
  • Measurement for workplace safety due to artificial optical radiation
UV radiometers and dosimeters from Opsytec

Radiometers

  • Irradiance measurement of lamps and irradiation facilities
  • Measurement of UV lamps, UV LEDs, and light sources
  • Dose measurements
  • Quality assurance in UV curing and UV bonding
  • Measurement for workplace safety
Lux meters and illuminance meters from Opsytec

Lux meters

  • Measuring illuminance in lux up to 500,000 lx
  • V(λ)-weighted LUX sensors with cosine correction
  • Ambient light in fluorescent inspection to ISO 3059
  • Light dose in photostability testing to ICH Q1B
  • Workplace lighting to EN 12464-1

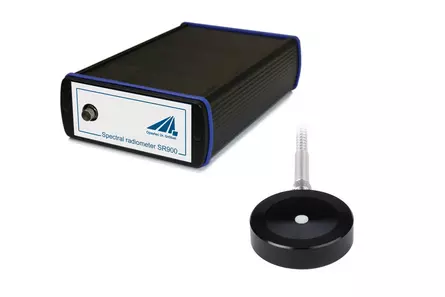

Spectrometers and spectroradiometers from Opsytec

Spectrometer

  • Spectroradiometry
  • Transmission measurement
  • Reflection and diffuse reflection measurement
  • Color measurement and photometric measurements
Large-area UV LED modules with air cooling & high output

UV LED light sources

  • High-power UV LEDs
  • Flood lamps
  • Spot light sources
  • UV LEDs for curing
UV light sources for adhesive curing and material inspection

UV Light Sources

  • Spot curing systems
  • Point light sources
  • UV hand lamps
  • Illumination tables
BASO4 integrating sphere with a diameter of 300 mm

Integrating spheres

  • Measurement of luminous flux and radiant flux
  • Measurement of lamps, LEDs, OLEDs, displays, and light guides
  • Measurement of diffuse reflection and transmission
  • Uniform light source

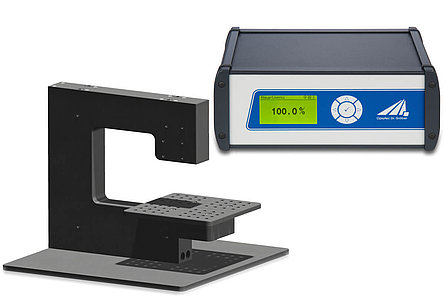

Process photometer for tranmission measurement at up to 30 different wavelengths

Photometer

  • Detection of organic contaminants, turbidity and ozone in water
  • Material testing for laser welding
  • Process control for glass, crystal, and plastic plates
  • Monitoring of water and wastewater
  • Transmission measurements in water and wastewater
