PROCESS PHOTOMETER ZPM

The process photometer ZPM measures the transmission of optical transparent materials like silica, glass, crystal, or plastics plates.

The influence of ambient light is minimized by using a modulation technique. This is of special importance for the measurement of scattering samples.

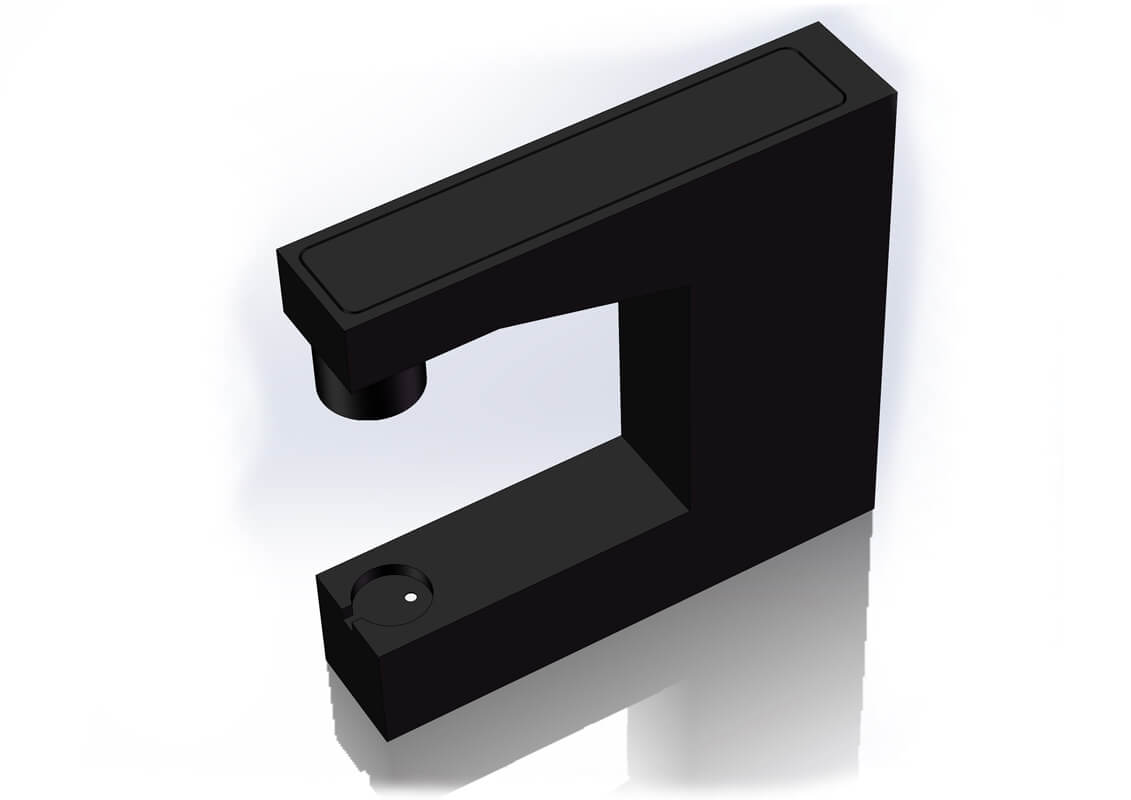

Yoke photometers measure at a fixed wavelength between 254 nm and 980 nm or with selectable wavelengths, for example, red (630 nm), green (520 nm), and blue (470 nm) for ZPM RGB. Our range includes more than 30 wavelengths; thus, the photometer can be optimally adapted to the application.
Transmission data are steadily shown on the display. Measuring data can be read by a computer or PLC (optionally) manually or after being triggered.

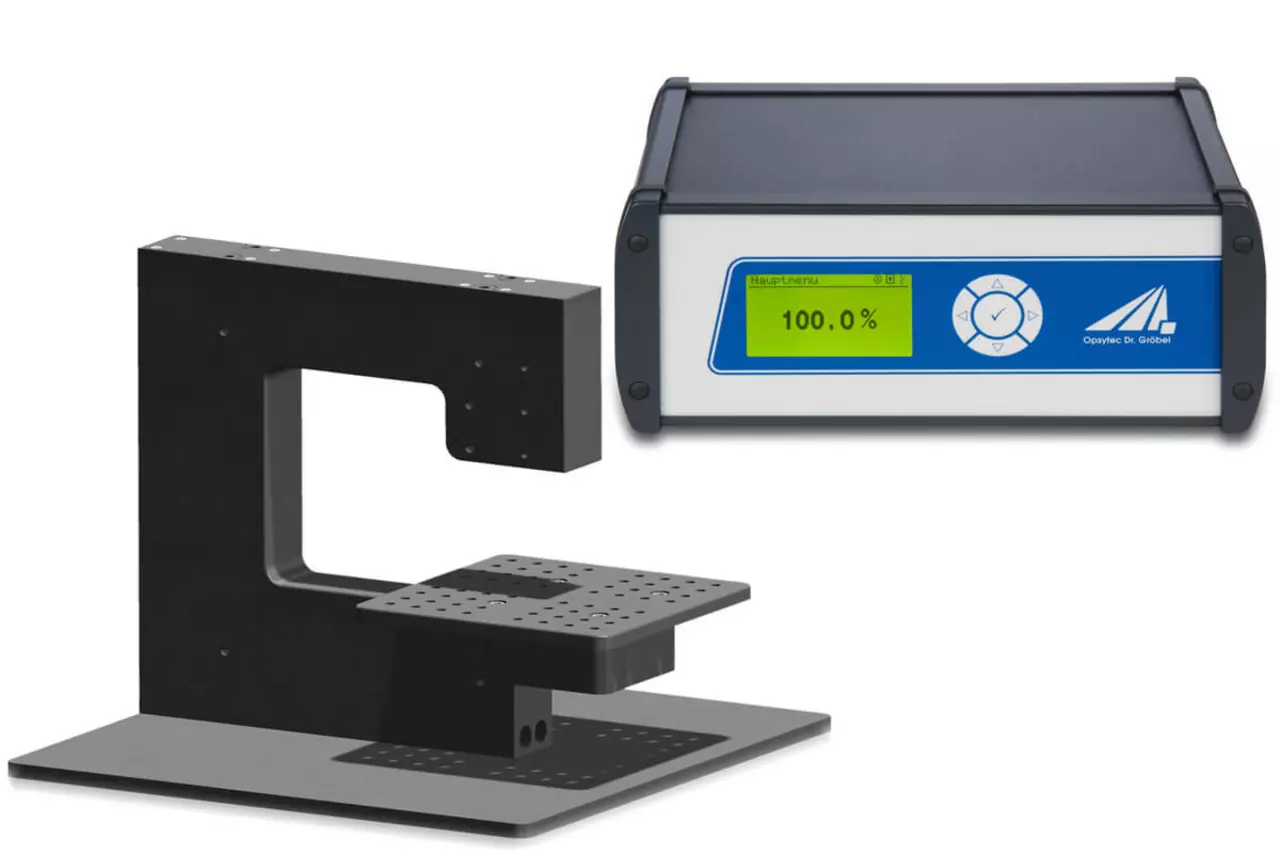

The device under test can be adjusted and fixed using the optional alignment table. We also manufacture individual yoke photometers for scattering samples or custom sizes. You can take advantage of the modular base unit and our in-house CAD-CAM production.



PPLICATIONS OF PROCESS PHOTOMETER ZPM

  • Transmission measurements
  • Materials testing
  • Process control
  • Material tests for laser beam welding

TECHNICAL DATA ZPM PROCESS PHOTOMETER FOR TRANSMISSION MEASUREMENTS

Measuring range 0 to 100% transmission
Resolution 0,1%
Calibration 100% or reference filter
Sampling rate 55 Hz to 0,6 Hz, adjustable
Averaging 1 - 20, moving average
Display graphical, 128 x 64 px
Dimensions, display unit 185 x 251 x 100 mm
Dimensions, photometer 160 x 110 x 30 mm
Weight ~ 3 kg
Mains 100 - 240 V, 50/60 Hz, 30 W
Lamp lifetime typical 20.000 h
Operating temperature 10 to 40 °C
Humidity <80%, non-condensing
Output signal, opt. 4 - 20 mA, 0-10 V
Relay contact, opt. 2 x 250 V, 1 A
Interface USB
